Stator CR250 (93-96) |
|
|
|
Part Number: ESC230
Price:
Product Description:

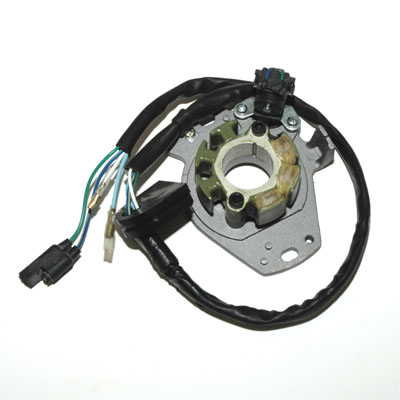

This is a complete replacement stator for your CR125/250. It comes as an aluminum plate with stator coil mounted, complete with wire leads, pulser and connectors, ready to plug in. The item is backed by a full one year warranty. This stator is a very cost effective and high quality replacement for the OE stator.
Detailed Technical Information:
Resistance BLUE - WHITE: 45 Ω +/-10%
Resistance BLUE/YELLOW - GREEN/WHITE: 250 Ω +/-10% (=PICKUP COIL)
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 HONDA
- Dirt Bike: HONDA CR250R, 93-96
Replaces OE Number(s):
31100-KZ3-891
|
|
|
