Part Number: ESG060
Price:
Product Description:

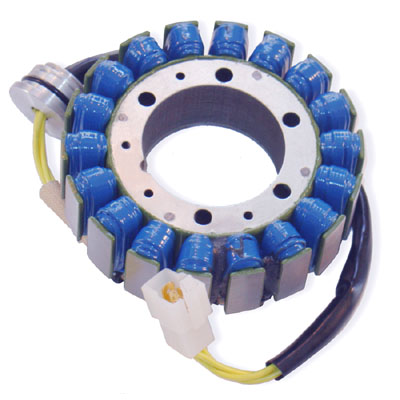

This heavy duty stator can be used as a high output replacement for the Honda OEM Goldwing stator. It comes with wiring and feed-through plug attached, ready to drop into the engine case and plug into the Honda's wiring harness. Output is about 20% more than the stock unit provides. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed OE stator and comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.6-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 115mm
Inside Diameter: 54mm
Thickness: 30mm
Power Output: 350W @ 4000RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 HONDA
- Street Motorcycle: HONDA GL1000 Goldwing, 75-79
Replaces OE Number(s):
31120-MB9-003, 31120-463-003, 31120-371-013
- Street Motorcycle: HONDA GL1100 Goldwing Interstate/Aspencade, 80-83
Replaces OE Number(s):
31120-MB9-003, 31120-463-003, 31120-371-013
- Street Motorcycle: HONDA GL1200 Goldwing, 84-87
Replaces OE Number(s):
31120-MG9-325
|
