Stator 3-Phase
Stator 3-Phase
Part Number: ESG080
Price:



We are more then happy to reserve one for you from our next shipment if you would like to continue with placing an order. You will be notified as soon as it is ready to ship.

Please for more information.




Product Description:

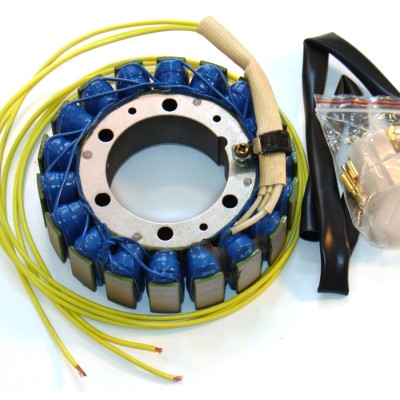

This heavy duty stator can be used as a higher output replacement for the OE stator. Output is about 20% more than the OE stator provides. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. To ease installation we supply it with new connectors and wire sleeving. It is a very cost-effective replacement unit for when the OE stator failed, and it comes with a full one year warranty.


Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 115mm
Inside Diameter: 54mm
Thickness: 30mm

Power Output: 300W @ 4000RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.


Download Documentation:
[ Download Fitting Instructions (PDF) ]

*Standard PDF files are viewable
on Adobe Reader (free).
