Product Description:

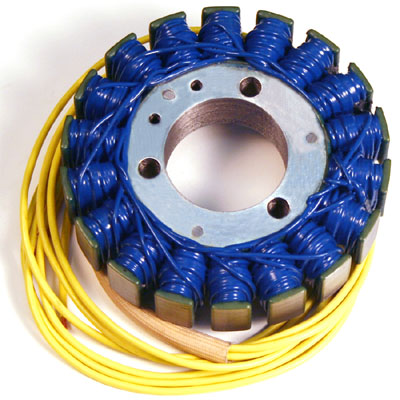

This heavy duty stator can be used as a higher output replacement for the OE stator. Output is about 20% more than the OE stator provides. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. To ease installation we supply it with extra connectors and wire sleeving. It is a very cost-effective replacement unit for when the OE stator failed, and it comes with a full one year warranty.


Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 103mm
Inside Diameter: 38mm
Thickness: 20mm


Download Documentation:
[ Download Fitting Instructions (PDF) ]

*Standard PDF files are viewable
on Adobe Reader (free).


Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.

• KAWASAKI
  • Street Motorcycle: KAWASAKI KZ550, 81-83
    Replaces OE Number(s):
    21003-1038
  • Street Motorcycle: KAWASAKI KZ550LTD, 81-83
    Replaces OE Number(s):
    21003-1038
  • Street Motorcycle: KAWASAKI KZ550LTD Spectre, 83-84
    Replaces OE Number(s):
    21003-1038
  • Street Motorcycle: KAWASAKI ZX550 GPZ, 83-86
    Replaces OE Number(s):
    21003-1038
  • Street Motorcycle: KAWASAKI KZ550 GPZ, 81-83
    Replaces OE Number(s):
    21003-1038
  • Street Motorcycle: KAWASAKI ZR550 Zephyr, 90-93
    Replaces OE Number(s):
    21003-1256
• SUZUKI
  • Street Motorcycle: SUZUKI GS550ES/ESF (16-valve), 83-86
    Replaces OE Number(s):
    31401-43400
  • Street Motorcycle: SUZUKI GS700EF/ESF, 1985
    Replaces OE Number(s):
    31401-08A00
  • Street Motorcycle: SUZUKI GS750ES/ESF / GSX750ES/EF, 83-87
    Replaces OE Number(s):
    31401-08A00
  • Street Motorcycle: SUZUKI GS1000, 78-79
    Replaces OE Number(s):
    31401-49010, 31401-49210, 31401-49310
  • Street Motorcycle: SUZUKI GS1000G (shaft drive), 80-81
    Replaces OE Number(s):
    31401-49010, 31401-49210, 31401-49310
  • Street Motorcycle: SUZUKI GS1000S (small fairing), 79-80
    Replaces OE Number(s):
    31401-49010, 31401-49210, 31401-49310
  • Street Motorcycle: SUZUKI GS1100E/ET/EZ (GSX1100E), 80-83
    Replaces OE Number(s):
    31401-49010, 31401-49210, 31401-49310
  • Street Motorcycle: SUZUKI GS1150E (GSX1150E), 83-86
    Replaces OE Number(s):
    31401-00A00
  • Street Motorcycle: SUZUKI GS1100G (shaft drive), 82-83
    Replaces OE Number(s):
    31401-09300, 31401-49410
