Part Number: ESG030
Price:
We are more then happy to reserve one for you from our next shipment if you would like to continue with placing an order. You will be notified as soon as it is ready to ship.
Please for more information.
Product Description:

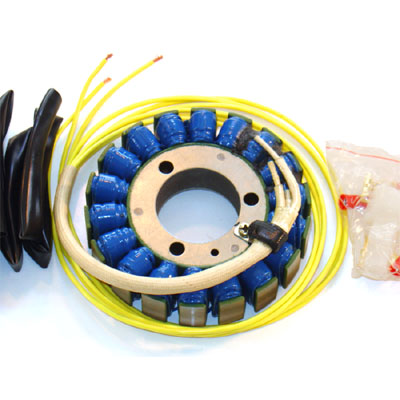

This heavy duty stator can be used as a higher output replacement for the OE stator. Output is about 20% more than the OE stator provides. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. To ease installation we supply it with new connectors and wire sleeving. It is a very cost-effective replacement unit for when the OE stator failed, and it comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Download Documentation:
[ Download Fitting Instructions (PDF) ]
*Standard PDF files are viewable
on Adobe Reader (free).
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 KAWASAKI
- Street Motorcycle: KAWASAKI KZ1000J, 81-83
Replaces OE Number(s):
21003-1040
- Street Motorcycle: KAWASAKI KZ1000LTD, 81-83
Replaces OE Number(s):
21003-1040
- Street Motorcycle: KAWASAKI KZ1000CSR, 81-82
Replaces OE Number(s):
21003-1040
- Street Motorcycle: KAWASAKI KZ1000P, 82-95
Replaces OE Number(s):
21003-1040
- Street Motorcycle: KAWASAKI KZ1000P, 96-05
Replaces OE Number(s):
21003-1327
- Street Motorcycle: KAWASAKI KZ1000R, 82-83
Replaces OE Number(s):
21003-1040
- Street Motorcycle: KAWASAKI KZ1100A (shaft drive), 81-83
Replaces OE Number(s):
21003-1040
- Street Motorcycle: KAWASAKI KZ1100B / GPZ1100, 81-82
Replaces OE Number(s):
21003-1040
- Street Motorcycle: KAWASAKI KZ1100D Spectre, 82-83
Replaces OE Number(s):
21003-1040
- Street Motorcycle: KAWASAKI KZ1100L LTD, 1983
Replaces OE Number(s):
21003-1040
- Street Motorcycle: KAWASAKI ZN1100 LTD, 81-82
Replaces OE Number(s):
21003-1040
- Street Motorcycle: KAWASAKI ZX1100 / GPZ1100R, 83-85
Replaces OE Number(s):
21003-1040
- Street Motorcycle: KAWASAKI KZ1300 Voyager, 1982
Replaces OE Number(s):
21003-1059
- Street Motorcycle: KAWASAKI ZN1300 Voyager SE, 1983
Replaces OE Number(s):
21003-1071, 21003-1104
- Street Motorcycle: KAWASAKI ZN1300 Voyager SE, 87-88
Replaces OE Number(s):
21003-1071, 21003-1104
|
