ATV Parts

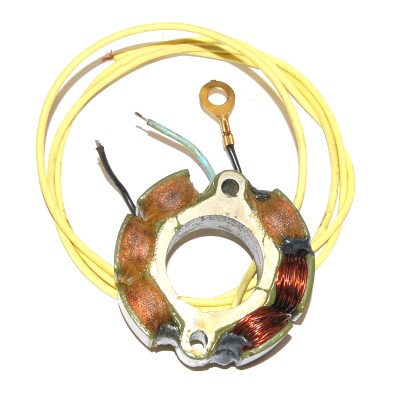

Lighting Stator 6-Pole - 35W
Lighting Stator 6-Pole - 35W
Part Number: ESL450
Price:


Product Description:
This is a 6-pole stator which replaces original CORE on the baseplate. You can re-use the existing pulser and wire leads. The item is backed by a full one year warranty. This stator is a very cost effective solution for when the OE stator has failed.


Detailed Technical Information:
Stator Outside Diameter: 59mm
Resistance RED/BLACK - WHITE/RED: 195-230 Ω (Source Coil)
Resistance YELLOW - Ground: 0.8-1.2 Ω (Lighting Coil)


Download Documentation:
[ Download Fitting Instructions (PDF) ]

*Standard PDF files are viewable
on Adobe Reader (free).



Vehicles This Product is Known to Fit:
