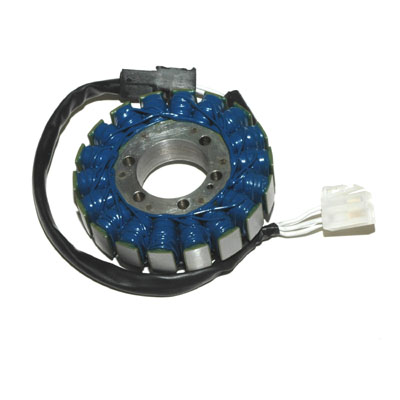

Stator Yamaha YFZ-R6 (03-05) |
|
|
|
Part Number: ESG785
Price:
Product Description:
This stator is a plug-in replacement for the OEM stator in your YFZ-R6. It comes with wiring and rubber grommet attached, ready to drop into the side case and plug into the YFZ's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty.
Detailed Technical Information:
Resistance between the WHITE leads: 0.7-1.0 Ω.
Between any WHITE lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 106mm
Inside Diameter: 38mm
Thickness: 13mm
Power Output:
275W @ 4000RPM
300W @ 5500RPM
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
