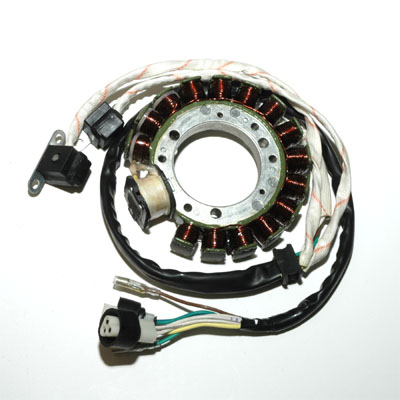

Stator Yamaha YFM350 Warrior/Big Bear |
|
|
|
Part Number: ESG431
Price:
Product Description:
This heavy duty stator is a plug-in replacement for the OEM stator in your Yamaha YFM350. It comes with pulser, ignition source coil output, connectors and rubber grommet attached, ready to drop into the side case and plug into the YFM's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty. Use this stator to replace the OE item which often suffers from ignition source coil failure.
Detailed Technical Information:
Resistance RED - WHITE: 320 Ω +/- 10%
Resistance GREEN - BROWN: 280 Ω +/- 10%
(RESISTANCE VALUES ARE FOR Electronicamotos PART ONLY AND WILL VARY FROM OEM DATA)
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 YAMAHA
- ATV: YAMAHA YFM350 Moto-4, 87-89
Replaces OE Number(s):
1YW-85510-21-00
- ATV: YAMAHA YFM350 Warrior, 87
Replaces OE Number(s):
1UY-85510-20-00, 3HN-85510-00-00
- ATV: YAMAHA YFM350 Warrior, 88-89
Replaces OE Number(s):
2XK-85510-20-00
|
|
|
