Stator Yamaha YFM350 Warrior (2002-2004) |
|
|
|
Part Number: ESG435
Price:
Product Description:

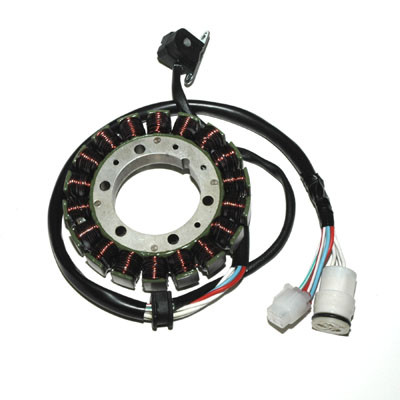

This heavy duty stator is a plug-in replacement for the OEM stator in your Yamaha YFM350. It comes with pulser, reverse protection output leads and the connectors and rubber grommet are all attached, ready to drop into the side case and plug into the YFM's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty.
Detailed Technical Information:
Resistance:
Between the red and blue wires: 0.3 ohms
Between the white wires: 0.6 ohms
Between the green white and red white: 474.3 ohms
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 YAMAHA
- ATV: YAMAHA YFZ350 RAPTOR 350 / SE / SE2, 04-07
Replaces OE Number(s):
5NF-81410-00-00
- ATV: YAMAHA YFM350 Warrior, 02-04
Replaces OE Number(s):
5NF-81410-00-00
- ATV: YAMAHA YFM400 BIG BEAR 400 IRS / HUNTER IRS / EXPLORING ED, 07
Replaces OE Number(s):
5FU-81410-00-00
- ATV: YAMAHA YFM400 BIG BEAR 400 4WD / HUNTER, 08
Replaces OE Number(s):
5FU-81410-00-00
- ATV: YAMAHA YFM400 Big Bear 4WD / Buckmaster, 00
Replaces OE Number(s):
5FU-81410-00-00
- ATV: YAMAHA YFM400 Big Bear 4WD / Realtree, 01
Replaces OE Number(s):
5FU-81410-00-00
- ATV: YAMAHA YFM400 Big Bear 2WD / +Realtree, 01
Replaces OE Number(s):
5FU-81410-00-00
- ATV: YAMAHA YFM350 Wolverine, 02
Replaces OE Number(s):
5FU-81410-00-00
- ATV: YAMAHA YFM400 BIG BEAR 400 4x4 (+Realtree), 02-06
Replaces OE Number(s):
5FU-81410-00-00
- ATV: YAMAHA YFM400 BIG BEAR 400 2WD (+Realtree), 02-04
Replaces OE Number(s):
5FU-81410-00-00
- ATV: YAMAHA YFM350 Wolverine 4x4, 03-05
Replaces OE Number(s):
5FU-85510-00-00
- ATV: YAMAHA YFZ350 RAPTOR 350, 08
Replaces OE Number(s):
5NF-81410-00-00
- ATV: YAMAHA YFM350 Moto-4, 95
|
|
|
