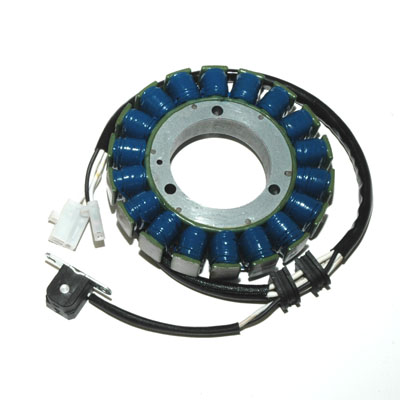

Stator Yamaha V-Star 1100 - High Power |
|
|
|
Part Number: ESG610
Price:
We are more then happy to reserve one for you from our next shipment if you would like to continue with placing an order. You will be notified as soon as it is ready to ship.
Please for more information.
Product Description:
This high power stator can be used as a plug-in replacement for the OEM stator in your XV1100. It comes with wiring and rubber grommet attached, ready to drop into the side case and plug into the Yamaha's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator, or if you just need the extra electrical power! It comes with a full one year warranty. Moving the voltage regulator/rectifier to a location in the air stream is highly recommended, also you will need to purchase our ESR440 regulator/rectifier as well. If you do not purchase the R/R there is a possible your stock unit will fail after a short period of time causing your battery to overcharge.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.4-1.0 O.
Between any WHITE lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 130mm
Inside Diameter: 58mm
Power Output: 300W @ 2500RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 10% of this value.
