Part Number: ESG130
Price:
Product Description:

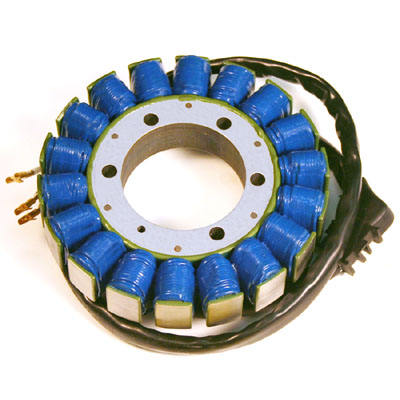

The ultimate FJR1300 high power stator. Its output is 510W, which doubles the power available for accessories on the bike.
The bike needs about 300W to run and charge the battery, stock output is 400 Watts (we checked output on our test rig and this is the real figure), which in stock configuration only leaves 100W available for accessories.
This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It simply is the best replacement part available, and comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 126mm
Power Output: 510W@ 4500RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
