Stator Suzuki RM250 (87-93)
Stator Suzuki RM250 (87-93)

Electronicamotos Quality Guarantee:
All products we sell come with an
industry-leading 1 Year Warranty,
so you can buy with confidence.
Part Number: ESC452
Price:


Product Description:

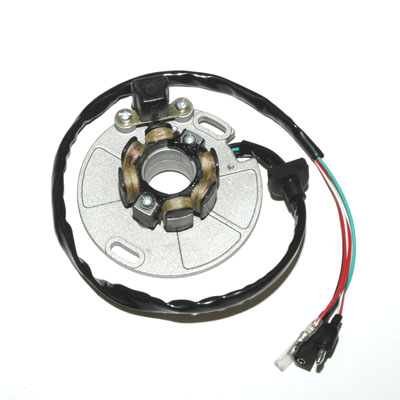

This is a complete replacement stator for your RM Suzuki. It comes as an aluminum plate with 6-pole stator coil mounted, complete with wire leads, pulser and connectors, ready to plug in. The item is backed by a full one year warranty. This stator is a very cost effective and high quality replacement for the OE stator.


Detailed Technical Information:
Plate Outside Diameter: 110mm
Stator Outside Diameter: 59mm
Resistance RED/BLACK - WHITE/RED: 195-230 Ω (Source Coil)
Resistance GREEN - RED: 93-112 Ω (Pickup Coil)


Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.



Other Products Available for the HONDA VF700C Magna, 84-87


Stator
Stator 3-Phase

Price:

Part Number: ESG140
OEM Part Number(s):
31120-MK3-004, 31120-MB1-024

[ Full Product Details ]
Regulator/Rectifier
Honda VF Magna/Sabre Regulator/Rectifier

Price:

Part Number: ESR650
OEM Part Number(s):
31600-MK3-000

[ Full Product Details ]
