Stator Suzuki LTZ-400 - Kawasaki KXF400 - Hi Power |
|
|
|
Part Number: ESG181
Price:
Product Description:

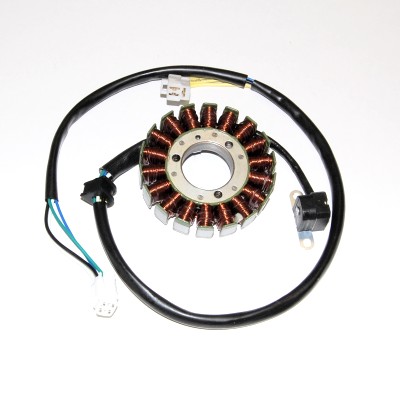

This heavy duty stator can be used as a plug-in replacement for the OEM stator in your Suzuki. It comes with wiring, pulser and rubber grommet attached, ready to drop into the side case and plug into the Suzuki's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty.
Detailed Technical Information:
Resistance between the YELLOW leads: 0.9-1.3 Ω.
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 92mm
Resistance GREEN - BLUE: 340Ω
Resistance WHITE - BLACK: 0.5Ω
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 KAWASAKI
- ATV: KAWASAKI KSF400, 03-06
Replaces OE Number(s):
21003-S006
- ATV: KAWASAKI KXF400, 03-06
Replaces OE Number(s):
21003-S006
