Part Number: ESG957
Price:
We are more then happy to reserve one for you from our next shipment if you would like to continue with placing an order. You will be notified as soon as it is ready to ship.
Please for more information.
Product Description:

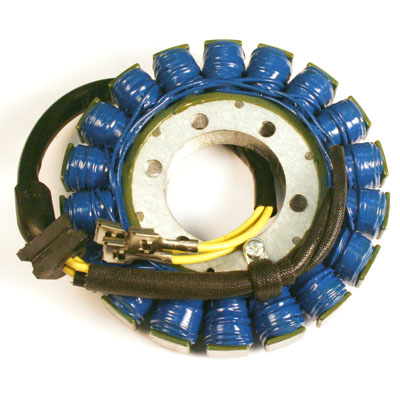

This stator is a plug-in replacement for the OEM stator in your CBR1000RR. It comes with wiring and rubber grommet attached, ready to drop into the side case and plug into the RR's wiring harness. This new stator is built with the highest grade lamination materials and the copper windings are triple insulated for maximum reliability. It is a very cost-effective high quality replacement for a failed or damaged OE stator and comes with a full one year warranty. NOTE: Any bike manufactured from APR 7 2004 to JAN 2006 is subject to an extended warranty through Honda on stator and flywheel
Detailed Technical Information:
Resistance between the YELLOW leads: 0.7-1.0 Ω
Between any YELLOW lead and GROUND: Open Circuit (OL on display)
Outside Diameter: 115mm
Inside Diameter: 42mm
Thickness: 12mm
Power Output: 300W @ 3500RPM*
*The actual power output varies depending on the configuration and condition of the charging system. Actual performance is typically within +/- 5% of this value.
Note: The OEM flywheels on the 1000RR use magnets that are (much) too powerful and these cause the OEM stators to overheat and fail. Check with your Honda dealer as there is a recall on the flywheel on some of the models. The OEM Honda stator produces about 350W @ 3500RPM, we scaled the output of our ESG957 down to 300W to drastically increase reliability.
