Part Number: ESF901
Price:
Product Description:

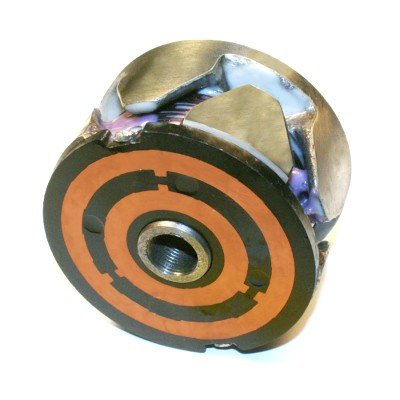

This is a brand new replacement rotor for the alternator system on CB650/750/900F Honda models. The OE rotors are prone to failure and Electronicamotos decided to have a quality replacement unit manufactured. It comes with a full one year warranty.
Detailed Technical Information:
Check the OE rotor resistance between the slip rings with a multimeter: if it is less than 4.3 Ohms you can be sure that the OE rotor is bad. Typical symptom: no charge to the battery. Often when the rotor fails due to internal shorting (resistance less than 2 Ohms) it will take out the voltage regulator/rectifier. Check on our ESR210 or ESR190 regulator/rectifier applications.
Vehicles This Product is Known to Fit:
Click on brand to expand/contract list.
Click on model to see all available products.
 HONDA
- Street Motorcycle: HONDA CB650Z / A (chain drive), 79-81
Replaces OE Number(s):
31110-426-832, 31110-426-83
- Street Motorcycle: HONDA CB750F/F2/KZ DOHC Supersport, 79-83
Replaces OE Number(s):
31110-426-832, 31110-426-83
- Street Motorcycle: HONDA CB750SC Nighthawk, 82-83
- Street Motorcycle: HONDA CB650SC Nighthawk SOHC (chain drive), 82
Replaces OE Number(s):
31110-426-832, 31110-426-83
- Street Motorcycle: HONDA CB900C Custom, 80-82
Replaces OE Number(s):
31110-426-832, 31110-426-83
- Street Motorcycle: HONDA CB900F/F2 Supersport / Bol d'Or, 80-82
Replaces OE Number(s):
31110-426-832, 31110-426-83
- Street Motorcycle: HONDA CB1000C Custom, 83
|
|
