Lighting Stator Suzuki RM-Z450 - 50W
Lighting Stator Suzuki RM-Z450 - 50W
Part Number: ESL405
Price:


Product Description:

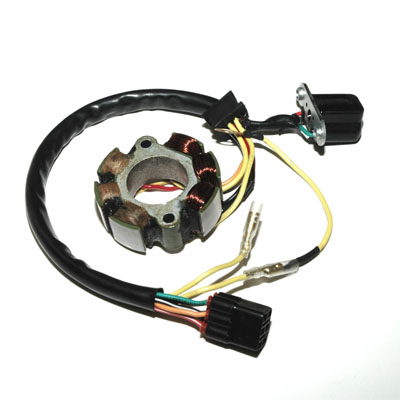

This is a complete lighting stator for your Suzuki RM-Z450 that replaces the OE stator in your bike. It comes as a 6-pole stator core, complete with wire leads, pulser and connector block, ready to plug in. The item is backed by a full one year warranty. This stator is a very cost effective and high quality replacement for the OE stator, and it provides a nice lighting output as well. We recommend using a 35W halogen bulb in your headlight for nice low rpm brightness, and safeguarding the system with our ESR012 AC Voltage regulator.


Detailed Technical Information:
Outside Diameter: 59mm
Resistance RED - BLACK/RED: 32-39Ω (Source Coil)
Resistance GREEN - RED/WHITE 90-115 Ω (Pickup Coil)
Resistance ORANGE - BLACK/WHITE 7.0-10 Ω (Power Coil)
Resistance: YELLOW - YELLOW: 0.8-1.2 Ω (Lighting Coil)
(Swap ORANGE and BLACK/WHITE in connector if bike does not start after installation)
